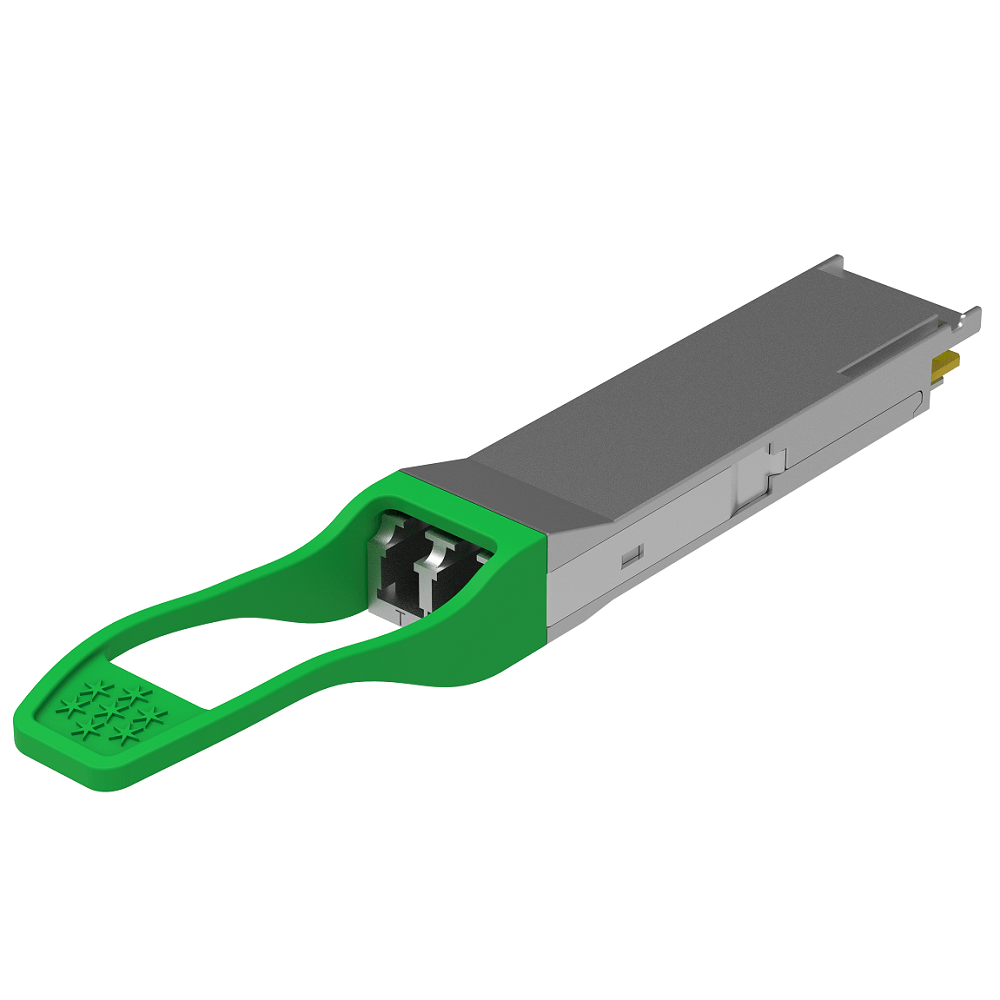

Оптический трансивер 100G QSFP28 CWDM4 1271,1291,1311,1331nm 2км
Отправить запрос в 1 клик
оптовые цены на заказы свыше 80 000 руб.
4 channels full-duplex transceiver modules
Transmission data rate up to 25.78Gbps per channel
4 channels DFB-based CWDM uncooled transmitter
4 channels PIN ROSA
Internal CDR circuits on both receiver and transmitter
channels
Non airtight optical engine design
Qualified under case temperature 85°C and humidity 85% @500 hours (the variation of TX≤2.5
dBm, RX≤1.5 dBm)
Low power consumption < 3.5W
Hot-pluggable QSFP28 form-factor
Up to reach 2km for G.652 SMF (with KR4 FEC)
Duplex LC receptacles
Operating case temperature range 0°C to +70°C
3.3V power supply voltage
RoHS-6 compliant (lead free)
Applications
Data Center Interconnect. 100G CWDM4 applications. InfiniBand EDR interconnects. Enterprise networking
